WT-C-90MM-Ipex3 IPEX / IPX Connector For GPS Positioning PCBS

Brand Name : OTW

Model Number : WT-C-90MM-Ipex3

Place of Origin : China

MOQ : 50pcs

Price : 0.05-0.39

Payment Terms : T/T, Western Union

Supply Ability : Above US$100 Million

Delivery Time : 7-10working days after receiving the payment

Type : IPEX / IPX connector

Country of Origin : CHINA

Brand : OTW

Description : U.fl/Ipex Smt Connectors

D/C : Ipex U.fl Mhf4 Plug

Supplier Type : Original manufacturer

Wire length : 90MM

Contact Now

The WT-C-90MM-Ipex3 Is Easy To Mount On GPS Positioning PCBS

Product descriptions from the supplier

Overview

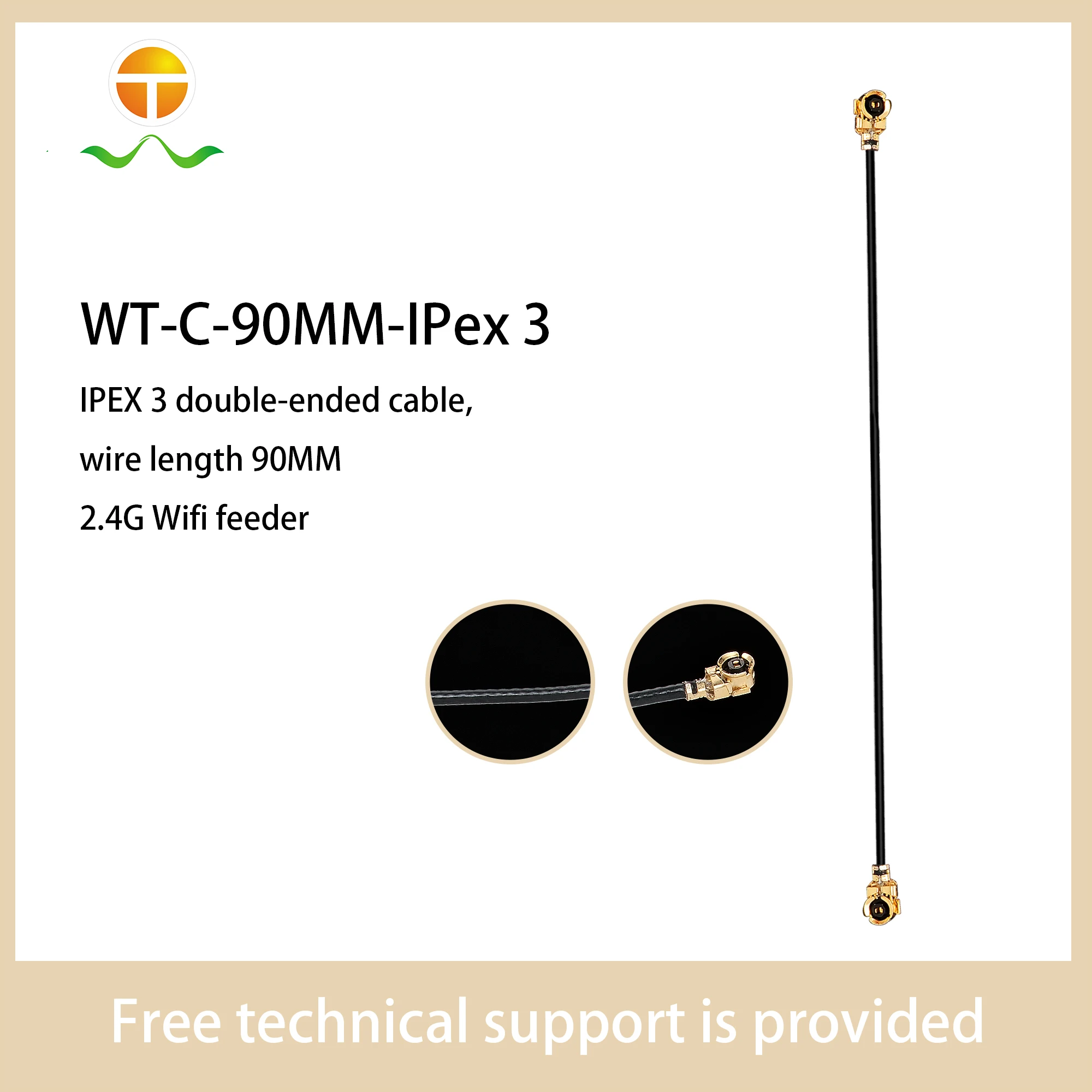

WT-C-90MM-Ipex3 IPEX / IPX Connector For GPS Positioning PCBS
Application:
PCB wireless module network card, routing, Bluetooth and other devices as mini connecting line.
WT-C-90MM-Ipex3 IPEX / IPX Connector For GPS Positioning PCBS
Features:
High frequency low loss easy to install.
WT-C-90MM-Ipex3 IPEX / IPX Connector For GPS Positioning PCBS
WT-C-90MM-Ipex3 IPEX / IPX Connector For GPS Positioning PCBS
Product performance
Model WT-C-90MM-Ipex3
Designation Ipex3 double-ended clamp
Wire rod

RG1.13

Impedance 50Ω
Connector Ipex Connector

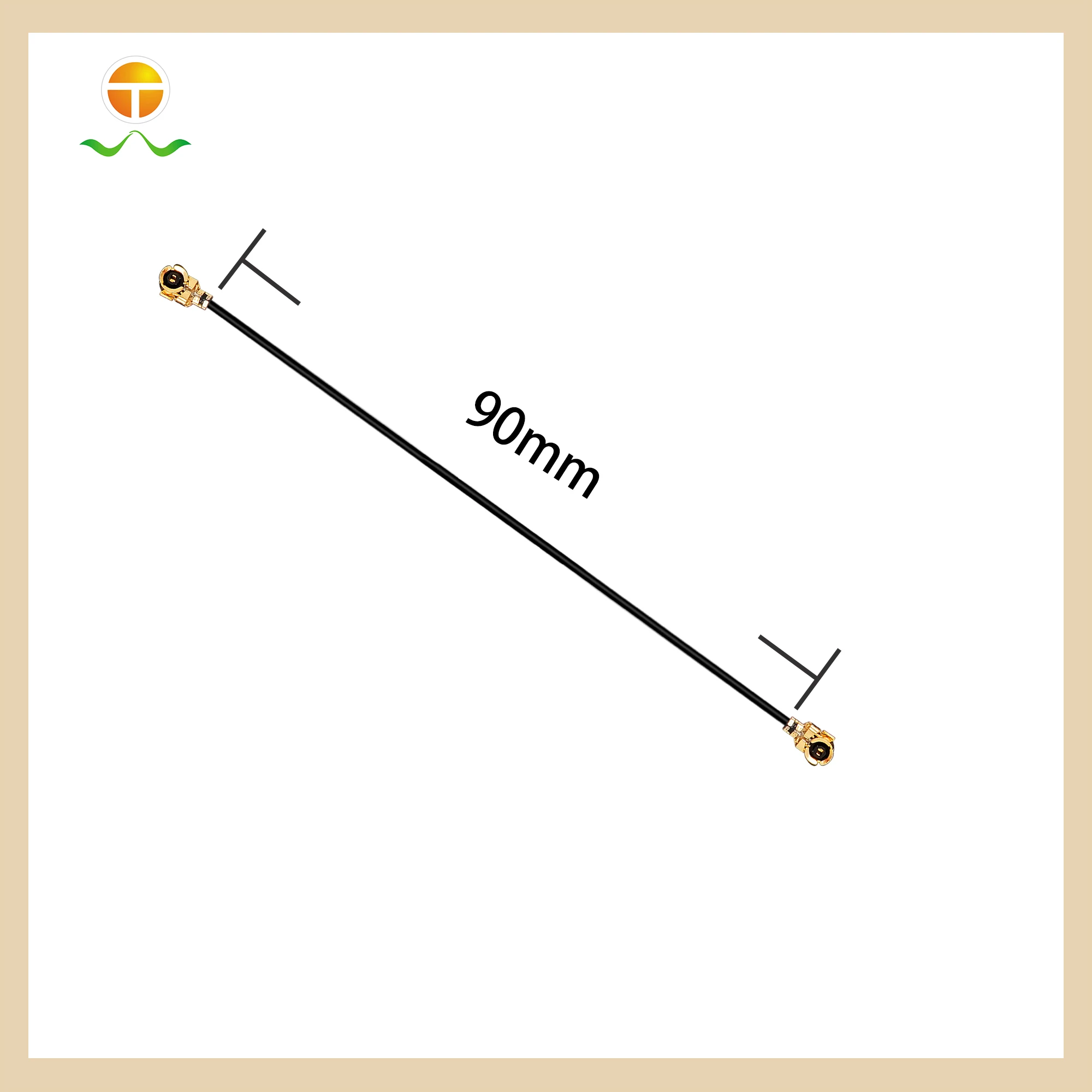

Wire length 90MM
Operating temperature -40℃~+90℃
Frequency range DC_6GHN
Standing-wave ratio 1.3MAX(0-3GHZ 1.2MAX)
Withstand voltage AC200V
Nominal voltage AC60V
